Lightweight nylon tapes. Supercedes Mil-PRF-5038J.

Mil-DTL-5038K is a military spec for lightweight nylon tapes used in binding and reinforcement applications. It is available from Bally Ribbon Mills as Berry Amendment compliant with all appropriate testing and paperwork. Please feel free to ask our Bally Ribbon Mills sales team for more detailed information on this spec.

  Type BRM Pattern Width Thickness Weight Tensile
click for larger image     inches inches oz/yard (max) lbs

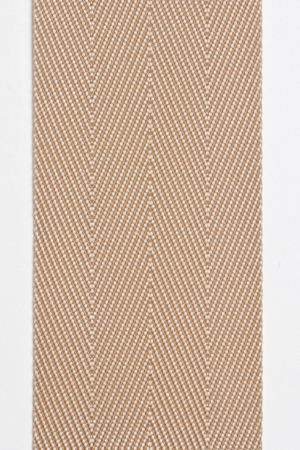

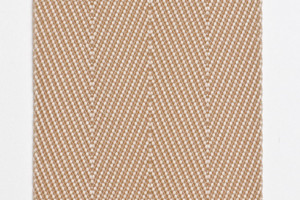

BRM Pattern 7440 Class 1<br> BRM Pattern 4461 Class 1a<br> MIL-PRF-5038J Type 2 2 7440 Class 1
4461 Class 1a
1.0 .025-.035 0.4 900
1.5 0.6 1300
2.0 0.8 1700

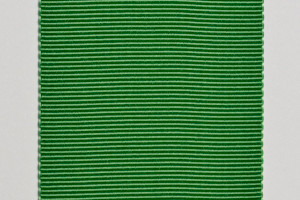

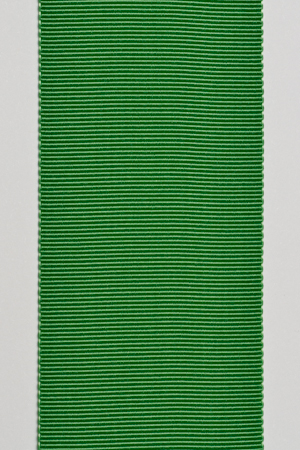

BRM Pattern 7407 Class 1<br> BRM Pattern 4462 Class 1a<br> MIL-PRF-5038J Type 3 3 7407 Class 1
4462 Class 1a
0.375 .015-.025 0.12 200
0.5 0.15 250
0.75 0.2 400
1.0 0.3 525
1.5 0.4 850

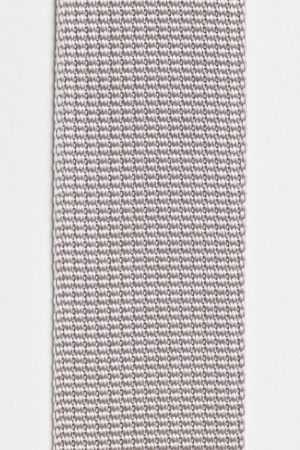

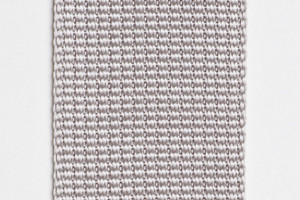

BRM Pattern 7408 Class 1<br> BRM Pattern 4463 Class 1a<br> MIL-PRF-5038J Type 4 4 7408 Class 1
4463 Class 1a
0.5 .030-.040 0.35 550
0.625 0.4 625
1.0 0.5 1000
1.125 0.6 1100
1.5 0.75 1500

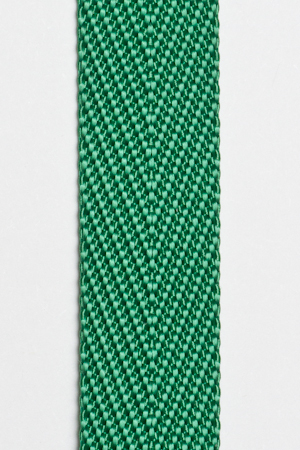

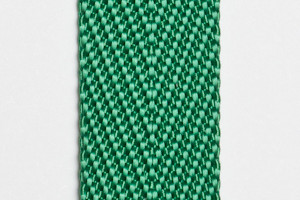

BRM Pattern 7866 Class 1<br> BRM Pattern 4464 Class 1a<br> MIL-PRF-5038J Type 5 5 7866 Class 1
4464 Class 1a
0.562 .020-.030 0.2 500

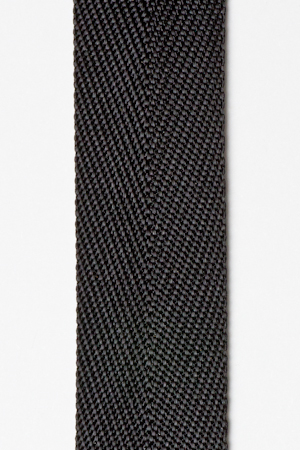

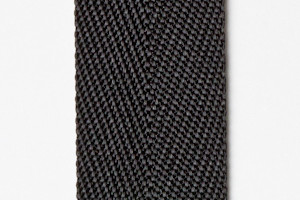

BRM Pattern 8275 Class 1<br> BRM Pattern 4465 Class 1a<br> MIL-PRF-5038J Type 6 6 8275 Class 1
4465 Class 1a
0.75 .020-.030 0.2 425
