We offer 2-D woven tapes and fabrics in carbon, ceramics, silicon carbide, quartz, aramid, and hybrids.

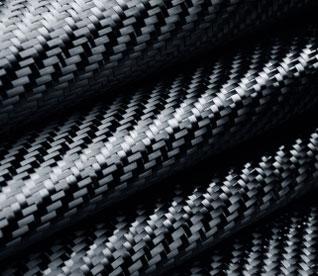

carbon_tapes_webbing

All woven tapes and fabrics are available in widths from 0.25″ (6.35 mm) to 60″ (1.524 m). The following is just a sampling of our woven materials capabilities:

    Yarns / Inch Weight Thickness
Yarn Type Weave Warp x Fill oz/yd2 (g/m2) inch (mm)
T300® - 1K 5HS 24 x 24 3.7 (125) 0.008 (0.20)
T300® - 3K 8HS 24 x 23 10.8 (366) 0.017 (0.42)
T300® - 12K Plain 8 x 8 15.5 (525) 0.029 (0.73)
AS4® - 3K Plain 11.5 x 11.5 5.7 (193) 1.010 (.25)
AS4® - 6K 5HS 11 x 11 10.9 (370) 0.020 (0.50)
P25® - 4K 8HS 13 x 13 20.9 (708) 0.036 (0.90)
P55® - 4K 8HS 13 x 13 21.7 (736) 0.038 (0.95)
IM7® - 4K 5HS 16 x 16 8.2 (280) 0.018 (0.46)
M40J® - 4K 5HS 10 x 10 5.3 (180) 0.010 (0.25)
